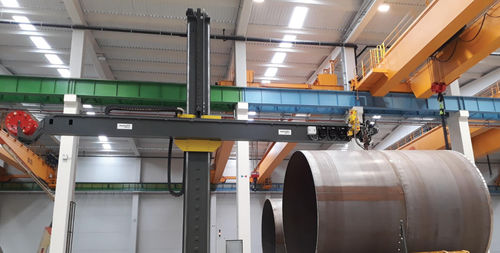

Welding column CB series

MIG/MAG or SAW rotary and/or longitudinal welding of cylindrical structures. General Characteristics DESCRIPTION The Welding Column and Boom machine is destined to MIG/MAG or SAW welding, formed by four elements: the car (optional), the column, the arm and the welding head. The car supports the structure and moves upon rails according X axis. The arm supported by the column, which carries the welding head, moves through linear guides vertically (Z axis) and horizontally (Y axis), allowing the adjustment for a correct welding position. The welding head is composed according the needs of the client. The column allows a rotation in 180º. The welding head is composed according the needs of the client, and might contains 'til three SAW torches and is endowed by a joint tracking automated system with high accuracy. The drives of the system are guaranteed by AC engines. Easy to use equipment which allows a high welding speed, reducing the manufacturing costs. Technical data This information is specific for standard models. For information about special models, please contact us! Models CB3030 CB4040 CB5050 CB6060 Arm’s stroke (Y) [mm] 3000 4000 5000 6000 Column’s stroke (X) [mm] 3000 4000 5000 6000 Max. height [mm] 5000 6630 7630 9200 Length of the arm [mm] 4300 5300 6300 7890 Car's stroke (X) [mm] 3000 3000 3000 3000
