Oxy-fuel cutting system DRAGOM series

plasmafor metalsheet metal

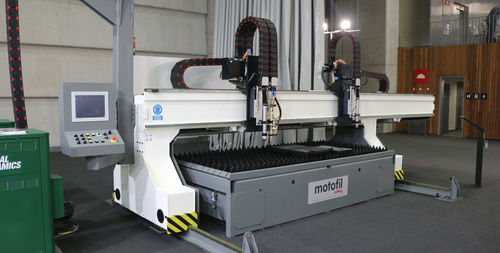

Robust, adjustable and highly productive solution in oxyfuel and plasma cutting. General Characteristics DESCRIPTION DRAGOm are the heavy-duty CNC thermal cutting machines of Motofil, which can be adapted for oxyfuel and plasma cutting processes and they can also integrate the options of plasma marking and mechanical drilling. DRAGOm can incorporate plasma and/or oxyfuel heads for torches and/or bevel torches. The DRAGOm cutting tables consist in a module arrangement, which allows the cutting length to be adjusted according to the needs of the client. The oxyfuel process allows the cutting of mild steel in thicknesses until 200mm and the plasma process allows the cutting of mild steel, stainless steel and aluminium until 100mm. ADVANTAGES Plasma Preferable to CO2 laser cutting process for materials with thicknesses higher to 6mm; Capable of cutting a wide range of materials and metals in various thicknesses, including ferrous and non-ferrous materials, oxidised, painted or scraped metal; High speed on thin to medium thicknesses plates; Low cost in consommables such as torches, tubes, regulators, etc., which are relatively cheaper; The waste of material is very reduced, and in turn, there is no need to proceed to its treatment. Oxyfuel The right choice for the cutting of mild steel plates with thicknesses above 75mm; Optimized and economical use of the several torches; Diversity of solutions on combustible gases; Low cost in consommables such as torches, tubes, regulators, etc., which are relatively cheaper; It doesn't need generators; Ease of learning to operate.
