Articulated robot SDA5F15-axistransferfor assembly
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 15-axis
- Function
- handling, packaging, for assembly, transfer
- Mounting
- floor-mounted
- Payload
5 kg
(11.023 lb)- Reach
845 mm, 1,118 mm
(33.27 in, 44.02 in)- Repeatability
0.06 mm
(0.0024 in)- Weight
110 kg
(242.5 lb)
Description

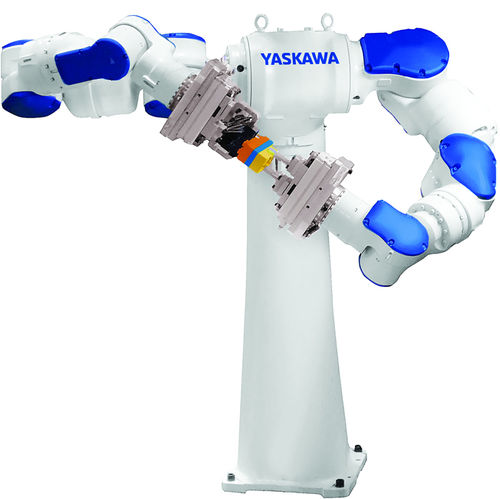

The SDA5F is a dual-arm, 15-axis robot designed for complex assembly and small part material handling applications. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms. The FS100 is a powerful controller with unmatched open software architecture. Superior dexterity and best-in-class wrist characteristics make slim, dual-arm robot ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks that formerly could only be done by people.
Catalogs
SDA5F
2 Pages
