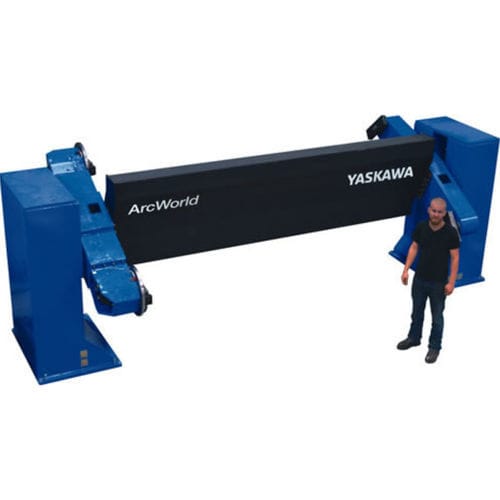

Motorized positioner RM2 series

linearpartsfor robots

Most space-efficient, two-station positioner design for parts 2-6 meters long, with standard sizes at 2.0, 3.0, 3.5, and 4.5 meters wide Two design configurations: Standard and long arm tooling options now available on all ferris wheel positioners Large capacity model with locking pins on each side to stabilize parts in front of robot while heavy parts are hoisted on load station Ergonomic load height and angle of fixture can be varied to ease part loading MotoMount fixture mounting system for quick change and longer life Z-beam center support provides maximum clearance for fixture turning and overhead clearance on operator side for hoist access Three servo-motor control All axes can turn simultaneously while indexing Operator can jog station axis while robot welds Integrated high amperage (800/1600 A) weld ground brushes Hollow tailstocks and optional slip-rings with DeviceNet or Ethernet cabling and air for automated fixturing
