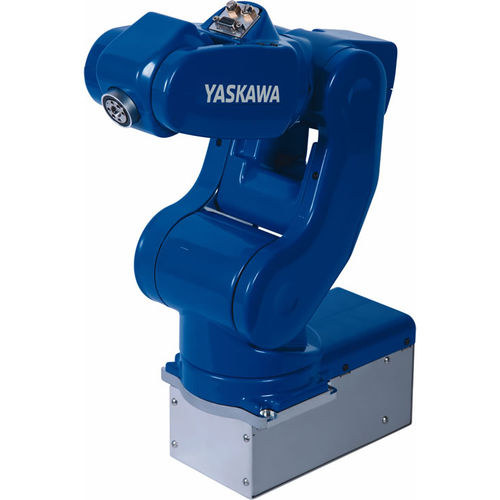

Articulated robot MotoMini

6-axisfor assemblypick-and-place

Equipped with the highest acceleration in a small robotic arm, the MotoMini is 20% faster than comparable small robots, reducing cycle time and boosting productivity. Internal cabling and air lines minimize interference with other process equipment, and a variety of mounting options (surface, wall, ceiling, etc.) accommodate high-density factory layouts. Designed for extremely agile, high-speed performance for a wide range of applications, the quiet, compact and precise MotoMini can take your small-part process to the next level. Extremely lightweight, six-axis industrial robot offers the highest accélération in a small-sized robot. 7-kg weight robot is easy to carry and idéal for tabletop-, floor-, ceiling-, tilt- or wall-mount installations, saving valuable floorspace. Accélération times are 20% faster over comparable small robots to reduce cycle time and increase production output. 0.5 kg payload supports a unique variety of tooling and sensors to fulfill diverse project needs. Compact footprint (191 mm x 124 mm) allows robot to be mounted close to workpieces and other machinery in existing lines or cells. Cables and air lines are routed through robot base to upper arm to increase cable life, enhance safety and reduce teaching time.
