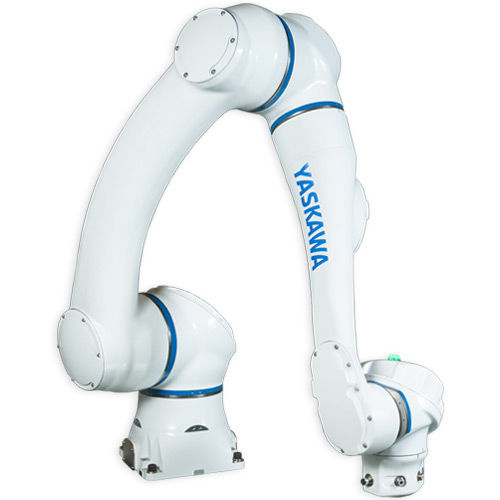

Cobot HC30PL

6-axishandlingpackaging

Specifically designed with palletizing in mind, the robust six-axis HC30PL human-collaborative robot with direct teach capability facilitates safe and efficient fenceless production in demanding environments. Part of the HC-series line, the HC30PL features a 30 kg payload capacity, a 1,700 maximum reach, and a plug and play tool flange based on EN ISO 9409-1 to facilitate select handling and packaging applications. Power and Force Limiting (PFL) technology constantly monitors force to enable safe human-robot interaction, and the cobot can easily shift between collaborative speed in PFL mode or full speed in industrial mode (based on risk assessment and process requirements) as production demands change. A thru-arm Category 6 cable provides a wide selection of communication options for tooling, and an IP67 rating and easy-to-clean surface facilitate use in sanitary settings. The HC30PL also includes NSF H1 food-grade grease for use in facilities where there is the possibility of incidental food contact. The HC30PL is controlled by the YRC1000 controller and is compatible with either the standard teach pendant or innovative Smart Pendant. The HC30PL can also be used with the extremely compact YRC1000micro controller. Technology Kits Grippers + EOAT Safety + Vision I/O + Accessories
