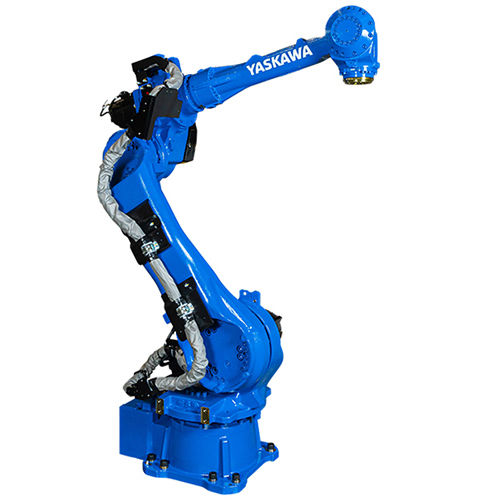

Articulated robot PL806-axispick-and-placepalletizing
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 6-axis
- Function
- pick-and-place, palletizing, bag palletizing, depalletizing
- Mounting
- floor-mounted
- Protection level
- IP54, IP67, IP65
- Other characteristics
- compact
- Payload
80 kg
(176.37 lb)- Reach
2,061 mm, 3,291 mm
(81.14 in, 129.57 in)- Repeatability
0.03 mm
(0.0012 in)- Weight
565 kg
(1,245.6 lb)
Description
Palletizing, Pick and Pack, IP65-67
Extremely agile and efficient, the five-axis PL80 brings robust capability in a small size robot to the PL-series robot line. Offering a wide working range in a compact design, the PL80 features exceptionally fast axis speeds and acceleration capabilities for optimum production output. Highly reliable for case palletizing, bag palletizing, depalletizing, layer picking and layer forming, the PL80 robot has an IP67-rated wrist and an IP54 body as standard.
