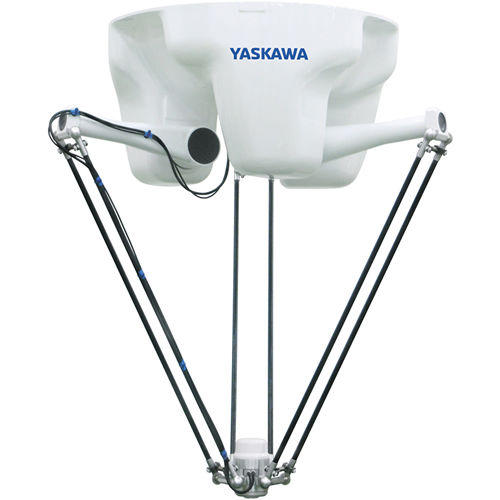

Delta robot MPP3H4-axisfor assemblypick-and-place
Add to favorites
Compare this product
Characteristics
- Type
- delta
- Number of axes
- 4-axis
- Function
- for assembly, pick-and-place, transfer
- Mounting
- ceiling-mounted
- Protection level
- IP67
- Other characteristics
- high-speed
- Payload
3 kg
(6.614 lb)- Reach
600 mm, 800 mm, 1,040 mm, 1,300 mm
(23.62 in, 31.5 in, 40.94 in, 51.18 in)- Repeatability
0.1 mm
(0.0039 in)- Weight
95 kg, 115 kg
(209.4 lb, 253.5 lb)
Description
Assembly, Part Transfer, Pick and Pack, Pick and Place
The ideal delta robot for high-speed picking operation - speeds up to 150 cycles per minute (CPM) with full 3 kg payload. This IP67-rated delta has a 1,300 mm horizontal reach and a 601 mm z-stroke. Highly accurate ±0.1 mm repeatability.
