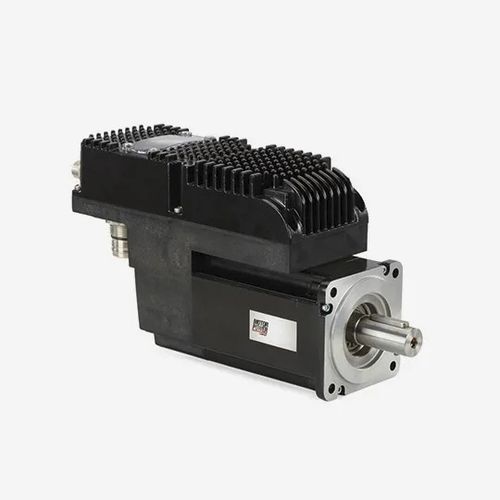

Integrated-drive servomotor DUET HV series

DCbrushless550 V

DUET HV is the latest high-voltage DUET series of integrated drive brushless servo motors that also incorporate absolute encoders, for uncompromising positioning accuracy. DUET HV servo motors can work via Ethercat connectivity with a master motion controller, or as a standalone unit where the application does not require synchronisation between axes during motion. If used in the latter configuration, DUET HV servo motors can use their internal PLC to manage the machine cycle. Full programmability helps execute the application in a very efficient manner and create sophisticated architectures with complex trajectories, enabling decentralised motion distribution and optimised cabling and cabinet design, in order to reduce the overall number of separate components and devices. Characteristics • Single- and multi-turn absolute encoder • Rated Torque from 1.3 Nm to 16.5 Nm • Sizes: 60, 80, 100 and 142 mm • 560 Vdc power supply • Optional brake • UL/CSA cURus certified insulation system • STO SIL 3 • Ethercat
