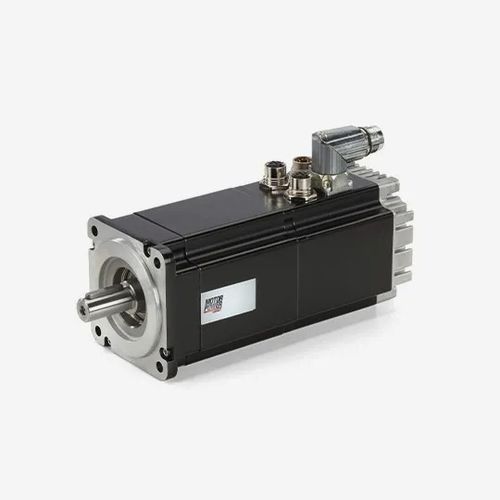

DC servo motor DUET AD seriesbrushless48 VIP65
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 48 V
- Protection class
- IP65
- Configuration
- with brake
- Applications
- industrial
- Other characteristics
- performance, motion control, EtherCAT, low-voltage, CANopen, integrated-drive, IEC, UL certified
- Power
480 W, 630 W
(0.653 hp, 0.857 hp)- Torque
Min.: 1.5 Nm
(1.1063 ft.lb)Max.: 2 Nm
(1.4751 ft.lb)- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)
Description
DUET AD models are the result of a design improvement by Motor Power Company.
These low voltage dc brushless drive integrated servo motors offer all the features and advantages of the Duet series with the added benefit of a lower cost, achieved through an original and optimised integration design. The advanced motion control system offers good value for the price, with a reasonable cost and an excellent balance of performance and features.
Characteristics
• 14 bit single-turn absolute encoder
• "Quasi" absolute encoder
• Rated Torque from 1.5 Nm to 2 Nm
• Size: 80mm
• 48 Vdc power supply
• Optional brake
• STO SIL 3 (IEC 61508), PLe | Cat. 3 (ISO 13849)
• UL/CSA cURus certified insulation system
• CANopen, Ethercat, Profinet
