AC motor SmokespillasynchronousIE3IE2
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Efficiency classes
- IE3, IE2
- Cooling mechanism
- self-ventilated
- Applications
- industrial
- Other characteristics
- double
- Power
Max.: 400 kW
(543.848 hp)Min.: 0.75 kW
(1.02 hp)
Description

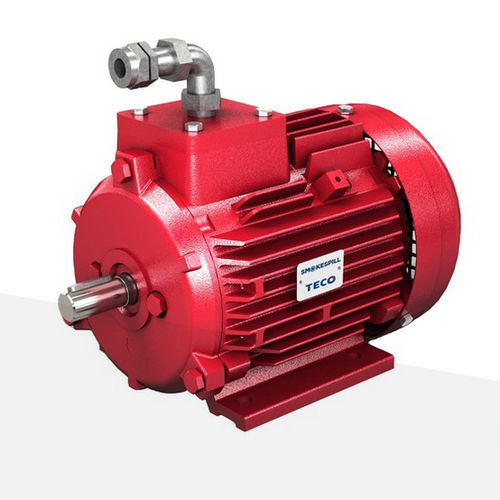

TECO’s smokespill motors are designed & tested to operate at extremes of temperature in the event of fires. These motors are installed in ventilation set which is to extract smoke & heat from buildings giving sufficient time for evacuation
The design meets EN12101-3, providing F400, F300 and F200 with efficiency level IE3 and IE2.
Characteristics
Design std EN12103-3; IEC60034
Available for F400, F300, F200
Frame size H80 - H315
Insulation class H
Foot mounted ; Pad mounted
Cooling IC411 ; IC418
Double lip seals on both sides
3 off PTC with clamping type connection
Metal cable gland on request
Metal conduit cable upon request
Ceramic terminal block upon request
Metal fan for IC411High temperature grease
