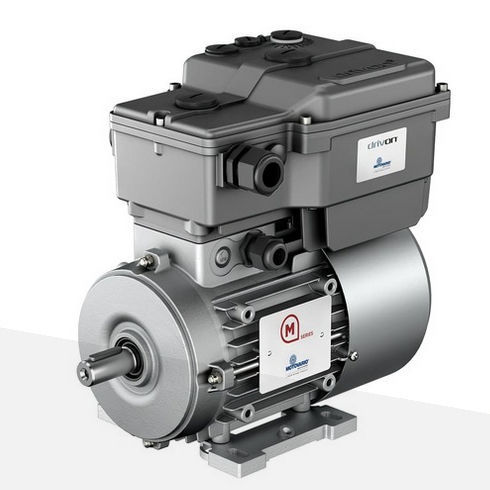

Motor drive DV

DRIVON, designed to be used in different types of applications (especially pumps, fans and conveyor belts) consists of extremely reliable components and is controlled by our software that provides excellent performance with special attention to the system energy efficiency. Its Vectorial Check, besides ensuring a constant motor torque throughout a wide range of frequencies without requiring the use of the servo-ventilation at low rpm, provides fast and precise output according to the application dynamic conditions allowing high torque overload of the motor. Conceived for extremely different and variable supply conditions, Drivon is available both in single-phase/three-phase version (200 ÷260 V / 47 ÷ 63 Hz) with a motor power between 0.25 and 1.5 kW, and in three-phase version (360 ÷ 480 V / 47 ÷ 63 Hz) with a motor power between 0.25 and 5.5 kW. The different functions of this software provide a wide range of standard and optional interfaces for a simple and flexible use. The electronic part, available in 10 power sizes, is located in two different chassis sizes, one for power up to 1.5 kW and the other for power up to 5.5 kW. Certifications Available: UL/CSA Characteristics 230 V Drivon: Single-phase and three-phase power supply: (200÷260) V / (47÷63) Hz Rated power: 0.25; 0.37; 0.55; 0.75; 1.1; 1.5 kW Speed range: 0÷2500 rpm 400V Drivon: Three-phase power supply: (360÷480) V / (47÷63) Hz Rated power: 0.25; 0.37; 0.55; 0.75; 1.1; 1.5; 2.2; 3.0; 4.0; 5.5 kW Speed range: 0÷3000 rpm
