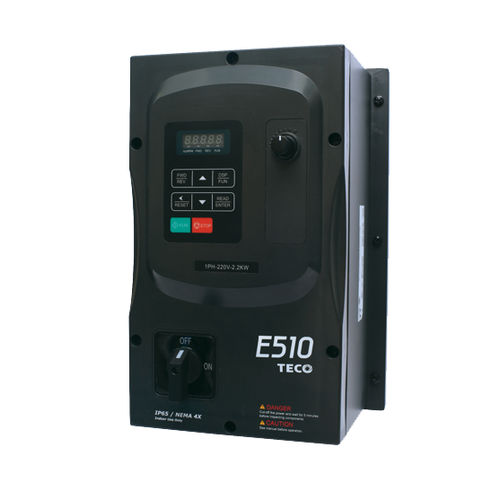

Motor drive E510 series

The E510 drive series is an advanced open loop vector drive. It is the ideal solution for machine builder who needs a drive with a variation of integrated functionalities, like build-in PLC, in combination with good torque behaviour. For harsh environment the E510 is available in IP66. The E510 is available both with single-phase (1ph) and three-phase (3ph) power supply. The whole series is equipped with integrated EMC filter (detachable) that complies with class C2. All versions feature integrated PLC and additional automatic functions which safes cost due to no need of external controller. Thanks to the standard integrated brake shopper equipped on all units, the E510 allows dynamic run in driving as also braking mode. Characteristics Output frequency up to 599Hz Control mode include V/F and Advanced SLV Motor Auto-tuning function Removable digital display and keypad including speed adjustment potentiometer Built-in Modbus RS485 communication for single and multiple control RJ45 interface for PC and copy module Communication interface modules for Profibus/ DeviceNet/ Ethernet(TCP/IP)/ CANopen Internal PLC functions with Ladder language (Timers, Counters, Comparators, ...) 16 programmable fixed speeds
