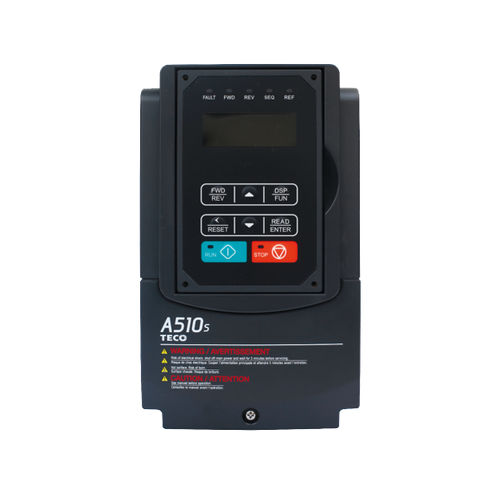

Motor drive A510s

The A510s is characterised by a high-performance vector control for high dynamic applications and significant torque overloads up to 200% such as, cranes, elevators, drilling machines, presses, winders/unwinders, spinning machines. Speed range: 1:1000 Speed precision: ± 0,1% Starting torque at 0 Hz: 200% Thanks to three-mode Auto-Tuning function, the drive can adopt to almost every condition and the user can significantly reduce commissioning times and maximise the product performance. The A510s series, featuring sophisticated speed and torque control algorithms, allows managing both asynchronous induction motors (IM) and permanent magnet synchronous motors (PM) with open-loop adjustment and in feedback mode with standstill torque. The A510s drive is distributed on a wide power range from 0,75kW to 315kW with 3ph 400V power supply. Besides motor control functions, the A510s series is also equipped with an integrated PLC programmable through Ladder language, which allows the inverter to independently manage the processes. Characteristics Advanced Closed-loop, V/f and sensorless vector control for induction motors (IM), Control for permanent magnet motors (PM) Three Mode Motor Auto-tuning function 200% of the rated torque at 0Hz Heavy/ Normal Duty Operation Advanced Regenerative Load Handling Capability Integrated braking transistor up to 30kW
