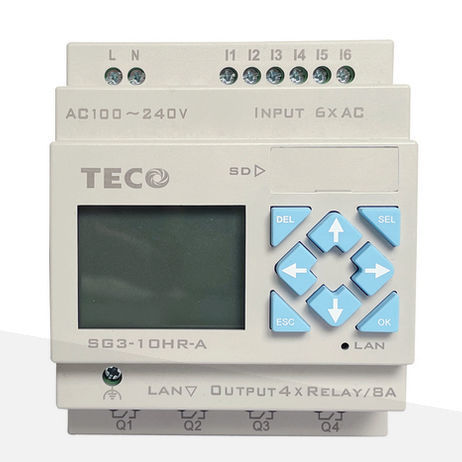

Integrated programmable relay SG2

inputsoutputsDeviceNet

The SG2 is a cost effective, easy-to-use, programmable relay for low and medium complexity applications. It includes keypad and screen to control and monitor the application. SG2 is available in two basic modules sizes: 10-12 I/O points 20 I/O points And optional expansion modules as digital or analogue I/O, temperature and communication (Modbus RTU, DeviceNet, Profibus and TCP/IP). Characteristics Max configuration of 44 inputs and utputs with 3 I/O expansion modules. V series with integrated RS-485 Modbus. Built-in 16x4 LCD display and ten languages: English, French, Spanish, Italian, German, Portuguese, Simple Chinese, Polish, Russian and Turkish. Built-in Real Time Clock by using capacitor (240 hours). Expansion communication modules: Profibus-DP, DeviceNet & Modbus RTU. Programming languages: Ladder format (max 300 lines, 4 instructions per line). Function Block Diagram (FBD) format (max 260 blocks). Built-in 31 multi-function timers, 31 sets of counters, 31 RTC comparators and 126 auxiliary & 31 analog compare. Relay output contact rating max 8A / Transistor output rating max 0.5A. Two level Password protection function (16 bit password). Free PC programming software provides Ladder & FBD program read/write/monitoring/ server and network set up functions. 2 PWM outputs up to 1 KHz.
