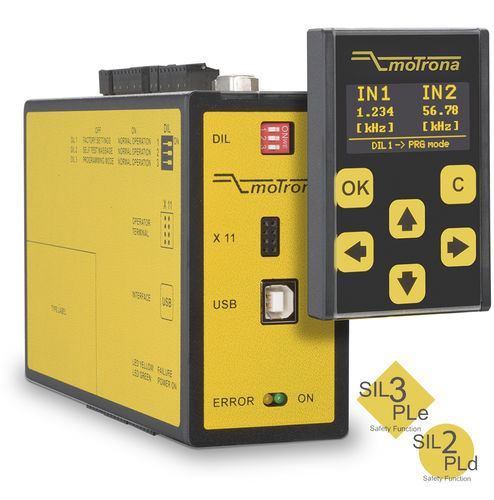

Safety relay DS Serie

speedSIL

Safety Motion Monitor DS230: Inputs for certified HTL-,RS422- and SinCos encoder, signal splitter DS236: Inputs for certified HTL-,RS422- and SinCos encoder DS240: Input for certified SinCos encoders, signal splitter DS246: Input for certified SinCos encoders DS250: Input for two independent, non-certified incremental encoders, signal splitter, wire monitoring DS260: Input for one certified incremental encoder, signal splitter, wire monitoring The DS series is suitable for safety-related monitor tasks, e. g. overspeed, underspeed, standstill or rotative direction for complex machine applications. • SIL3 /PLe or SIL2 / PLd certification • Safety functions equivalent to EN 61800-5-2 (SS1, SS2, SOS, SLS, SDI, SSM, SLI, SBC, STO, SMS) • Input frequency up to 500 kHz • Power supply 18 ... 30 V • Compact housing for 35 mm mounting top hat rail (according to EN 60715) • Setup via USB port by operator software OS6.0 • Plug-in display and programming unit BG200 (optional)
