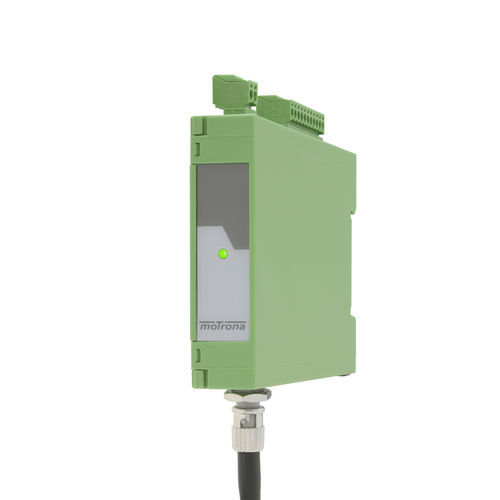

Fiber optic transmitter LW217

compactSSI

The fiber optic modules of the LW series each consist of a transmitter and a receiver. The LW217 converts SSI signals into light waves and sends them to the LW218 receiver module. This converts the light waves back into absolute values. LW217 = transmitter LW218 = receiver The fiber optic modules LW217 and LW218 have an optical wavelength of 1300 nm and are capable of transmitting signals over a distance of 2000m. • 1 SSI input / output channel [RS422] • Input frequency up to 1 MHz • SSI resolution from 1-99 bits adjustable • Short conversion times: under 300ns
