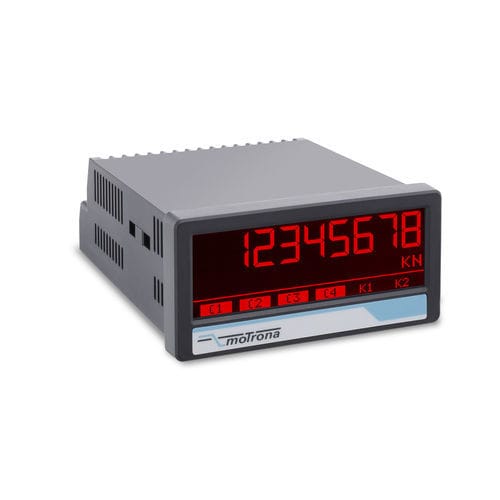

Strain Gauge Indicator for force sensors (full bridge)
Strain gauge display with a 6-wire connection for strain gauge full bridge sensors. All types of tension, pressure and force sensors guarantee precise and fast measurement for a wide range of applications, e.g. B. hydraulic presses, rolling machines, bending machines and strength testing machines.
• Strain gauge input, 6-wire connection
• Input pt100 and thermocouples (J and K)
• 3 control inputs for HTL / PNP signals
• Power supply 18 ... 30 VDC
• Adjustable bridge voltage 3 VDC to 10 VDC
• 1 … 10 mV sensitivity
• Standard installation housing with 96 x 48 mm and protection class IP65
• Bright and high-contrast graphic display with event-dependent color variants
• Emulation of a 7-segment display with symbols and units
• Intuitive and simple parameterization through plain text and touchscreen
• Numerous functions such as tare, filter, averaging
• Linearization with 24 support points
• Option AC: Power supply 115 ... 230 VAC
• Option AO: 16 bit analog output, 4 control outputs, serial RS232 interface
• Option AR: 16 bit analog output, 4 control outputs, serial RS485 interface
• Option CO: 4 control outputs, serial RS232 interface
• Option CR: 4 control outputs, serial RS485 interface
• Option RL: 2 relay outputs
• Option IO: IO-Link Device V1.1
Options can be combined.
