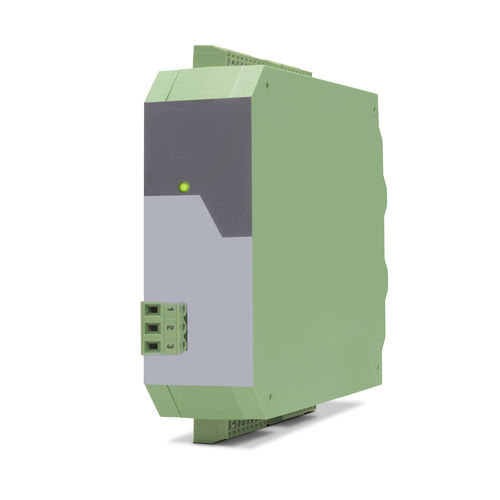

Signal converter IO220

analogIO-LinkDIN rail

IO220: Signal Converter Analog >>> IO-Link Other available devices: • IO221 with strain gauge input • IO222 with Incremental input • IO223 with SSI input Signal converter with analog input and IO-Link interface for analog input signals of ±10 V or 0/4 ... 20 mA. This IO-Link coupler transfers analog signals into the IO-Link world. In addition, the conversion result can be called up via a USB port. The device parameterization is simple via the USB interface or via IO-Link using various engineering tools. • 4 analog inputs for ±10 V or 0/4 ... 20 mA • optionally 3 control inputs for PNP signals [10 ... 30 VDC] • IO link interface • Power supply 12 ... 30 VDC • Compact housing for mounting on 35 mm DIN rail (according to EN 60715) • USB interface for programming
