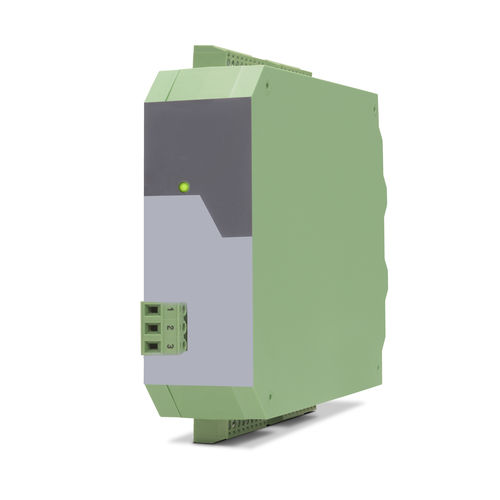

Signal converter IO221

USBIO-Linkfor load cells

COMING SOON! IO221: Signal Converter Strain gauge >>> IO-Link Other available devices: • IO220 with analog input • IO222 with incremental input) • IO223 with SSI input Signal converter with strain gauge input and IO-Link interface for force sensors and load cells. This IO-Link coupler transfers strain gauge signals into the IO-Link world. In addition, the conversion result can be called up via a USB port. The device parameterization is simple via the USB interface or via IO-Link using various engineering tools. • 1 Strain gauge input • 3 VDC and 10 VDC bridge voltage per sensor connection • 1 … 10 mV sensitivity • optionally 3 control inputs for PNP signals [10 ... 30 VDC] • IO link interface • Power supply 12 ... 30 VDC • Compact housing for mounting on 35 mm DIN rail (according to EN 60715) • USB interface for programming
