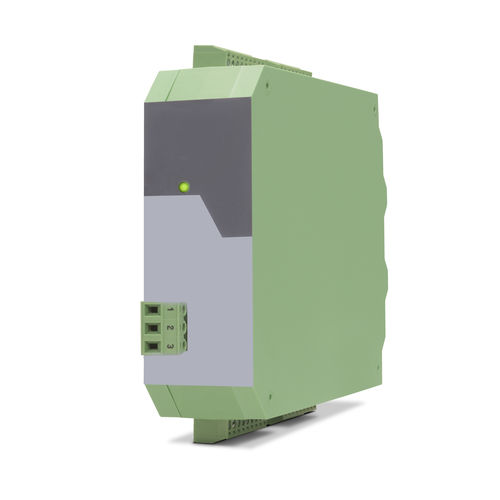

Signal converter IO223

USBIO-LinkSSI

COMING SOON! IO223: Signal Converter SSI >>> IO-Link Other available devices: • IO220 with analog input • IO221 with Strain gauge input • IO222 with incremental input Signal converter with SSI input and IO-Link interface for single-turn and multi-turn encoders. This IO-Link coupler transfers SSI signals to the IO-Link world. In addition, the conversion result can be called up via an USB port. The device parameterization is simple via the USB interface or via IO-Link using various engineering tools. • 1 SSI input (10 … 32 bit) • for singleturn and multiturn encoders • optionally 3 control inputs for PNP signals [10 ... 30 VDC] • IO link interface • Power supply 12 ... 30 VDC • Compact housing for mounting on 35 mm DIN rail (according to EN 60715) • USB interface for programming
