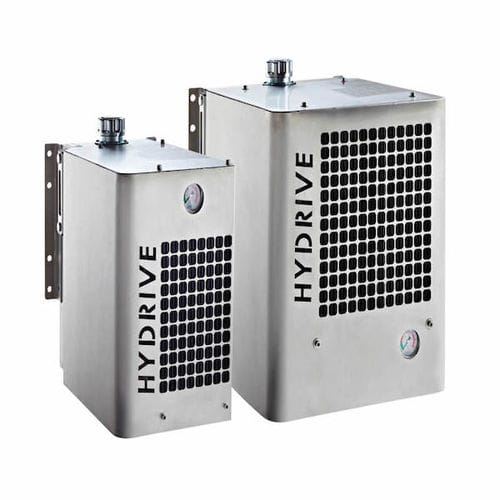

Oil cooler Hydrive seriescompactadjustablestainless steel
Add to favorites
Compare this product
Characteristics
- Material
- oil
- Other characteristics
- compact, stainless steel, electric, adjustable, hydraulic motor
- Power
10 kW, 20 kW
- Maximum temperature
40 °F, 70 °F
(21 °C, 104 °C)- Flow rate
Max.: 200 l/min
(52.834 us gal/min)Min.: 55 l/min
(14.529 us gal/min)- Pressure
Max.: 280 bar
(4,061.057 psi)Min.: 1 bar
(14.504 psi)
Description
Hydraulic Cooler is used on hydraulic drives for pumps and compressors, and integrates into three functions: oil tank, oil cooler and security relief valve.
Performance and Specifications
Performance
Constructed from stainless-steel materials to withstand the harsh environmental and operation conditions
Lower in weight and volume than a standard tank
Compact size allows for easy installation on tractors and trucks
The compact design, which includes a centrifugal fan with a low noise level, provides maximum performance and heat dissipation up to 13.5 HP
Robustness
Corrosion protection (stainless steel)
No additional electric wiring
Security adjustable relief valve
Easy to read restriction gauge (mounted on the front)
Options
NPT or BSP Flanges
Control valve (on 2010 model)
Complete hydraulic system package
Hydraulic motor adapter for Mouvex pumps
