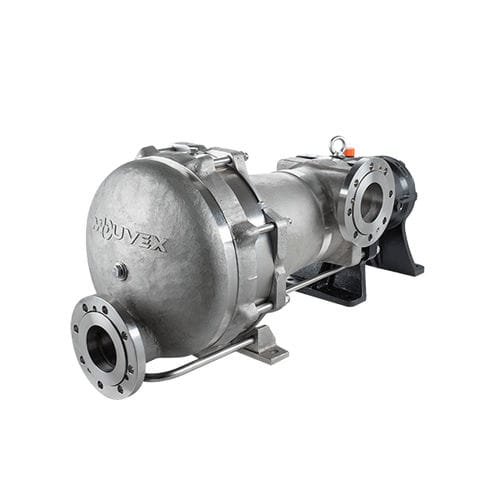

Chemical pump G-FLO serieselectricself-primingeccentric disc
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- electric
- Priming
- self-priming
- Technology
- eccentric disc
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- transfer, discharge
- Other characteristics
- suction, with mechanical seals, seal-less, heating
- Flow
Min.: 6.5 m³/h
(229.54533 ft³/h)Max.: 70 m³/h
(2,472.02667 ft³/h)- Pressure
7 bar, 10 bar
(101.526 psi, 145.038 psi)- Fluid temperature
100 °C
(212 °F)- Length
Min.: 786 mm
(31 in)Max.: 1,194 mm
(47 in)- Width
Min.: 450 mm
(17.72 in)Max.: 689.5 mm
(27.15 in)- Height
Min.: 287 mm
(11.3 in)Max.: 464 mm
(18.27 in)- Weight
Min.: 41 kg
(90.39 lb)Max.: 321 kg
(707.68 lb)
Description
Seal-Less Eccentric Disc Pumps are designed to provide premium performance and the ultimate in full containment and safety in chemical-processing and industrial applications, delivering high suction vacuum and high discharge pressure that allow it to self-prime and fully maximize product containment. G-FLO pumps are ideally suited for the safe transfer of critical high-value fluids.
Performance and Specifications
Performance
Provides consistent and efficient flow with a wide range of viscosities
Eccentric disc design allows for consistent flow and improved energy savings
Extremely gentle, pulse-free flow to protect shear-sensitive products
Reduced maintenance with no mechanical seals or timing gears
Easy to install
Options
ISO PN 20 flanges / ANSI 150 flanges
ISO PN 16 flanges
Heating Jacket
VIDEO
Catalogs
G-FLO Series
8 Pages
G-FLO 65
4 Pages
