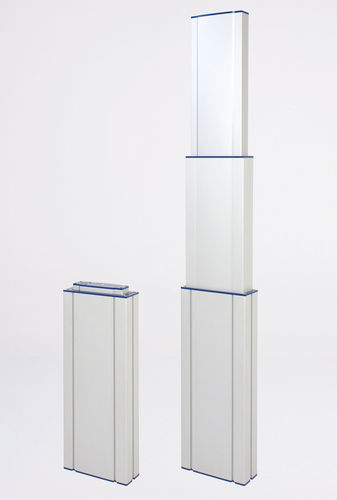

Lifting column for medical applications MAC4

industrial3-stageheavy-duty

Low built-in measurement, long stroke. For industrial/medical use. MAC4 is a completely new developed lifting column, designed to meet the requirements of aesthetics and quality in industrial workplaces. Usable in many industrial/medical applications. In the development, high stability and a reasonable price level were emphasized. MAC4 is a Low-Noise lifting column. The lifting column is designed for loads of max. 1750N and can be moved up to 47mm/s without load. The bending moment is1000Nm. Plug & Play: You can also get MAC4 as a complete Plug & Play solution, including one or more MAC4 lifting columns, a Movetec control box 230V AC, all cables and a control panel. Option: By Selecting a control box with Bluetooth®, MAC4 are easily controlled by iPhone® or Android®-Smartphone. Material specifications: • Outer profile: Anodized Aluminium • Middle profile: Anodized Aluminium • Inner profile: Anodized Aluminium • Friction sliders: POM Derivate • Top- and Bottom plate: Steel • Lifting system drive parts: Aluminium, Steel, ABS, POM, PP Technical data: • Dynamic bending moment: 800 Nm • Static bending moment: 1000 Nm • Max. speed without load: 47mm/s (800 N) • Installation length/Built-in measurement: 236-819mm • Operation temperature: +5°C – +45°C • Power supply/Voltage: 12/24V DC • Intermittens: 10-25% • Double Hall-sensors: Yes • Top plate size: 173mm x 54mm • Bottom plate size: 222mm x 79mm • Outer profile size: 222mm x 79mm • Inner profile size:173mm x 54mm • Mounting track: Width top 8,1mm/inside 8,1-12mm/depth 5mm • Control box: More options, see www.movetec.dk
