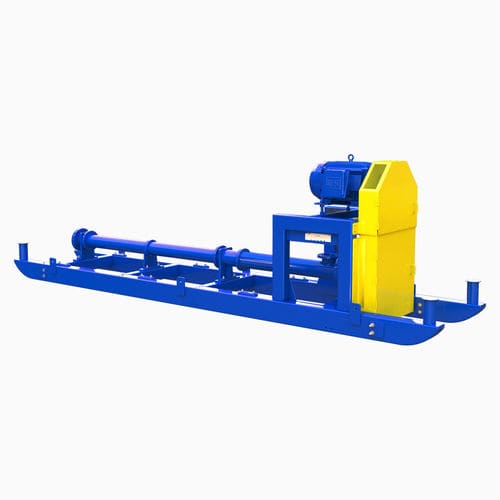

Slurry pump E1CB
electricprogressive cavitystationary

slurry pump
slurry pump
Add to favorites
Compare this product


Characteristics

Fluid
slurry
Operation
electric
Technology
progressive cavity
Mobility
stationary
Domain
mining and quarrying
Applications
dewatering, control
Other characteristics
standard, coated, fully integrated
Flow

Min.: 0 us gal/min
(0 l/min)

Max.: 1,800 us gal/min
(6,813.74121 l/min)

Pressure

Min.: 0 psi

Max.: 2,362 psi

Fluid temperature

Min.: 14 °F
(-10 °C)

Max.: 230 °F
(110 °C)

Description

Progressing cavity pump mine dewatering systems have been employed in the mining industry for over 30 years. This is a highly efficient, fully integrated pump package solution for reducing the total cost of a mine dewatering program. The pump is based on the Epsilon Pump's PowerDrive™ transmission providing increase reliability with no wearing components between the drive end and the pumping element. This technology is backed by a 10 year warranty. Features Halar coated PowerDrive™ transmission with 10 year warranty Standard 316 SS, hard chrome plated (HCP) rotor Stator is made of resilient, abrasion resistant, synthetic rubber Purpose built bearing housing for arduous mining environments with lip seals, labyrinth rings and continuous greasing facility High-quality, graphite gland packing Unique gland arrangement which can offer up to three times the life on your drive shaft wear Heavy duty mine spec motors Typical Applications Mine dewatering Ground lime pastes Polyelectrolyte flocculent Coal slurries China clays Grout pacing Strata control
