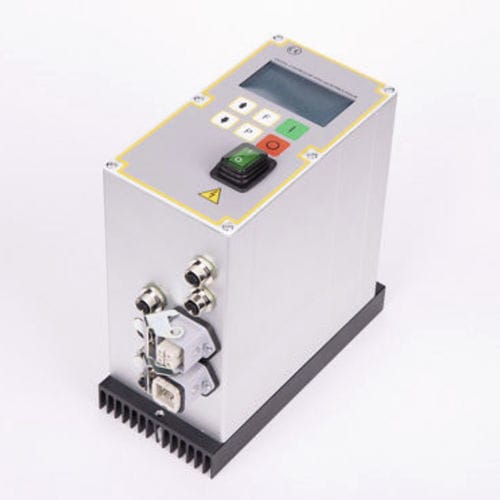

Frequency indicator controller FQ2NG
voltagetemperaturecurrent

frequency indicator controller
frequency indicator controller
frequency indicator controller
frequency indicator controller
Add to favorites
Compare this product


Characteristics

Measured value
temperature, current, voltage, frequency, time
Display
digital

Description

FQNG is a frequency controller up to 15A, 110/230V. It has automatic frequency search and current limiter to avoid coils damage. It can be used with the amplitude sensor SIND3. Application: Conveyor and assembly automation in packaging and dosing industry. Linear vibrating feeder and vibratory bowl feeder up to 15A. Perfect for markets with different Hz without need of mechanical tuning. Max Output Current [A] - 10, 15, 6 Input Voltage [V] - 80-250 Vibration Frequency [Hz] - 5-140 Output Voltage [V] - 0-200 Stabilized vs Input Voltage - Yes Soft Start [s] - 0-10 ON/OFF - 0-24V, Dry contact Automatic Input PLC - 0-10V/4-20mA Working Temperature - -20/55°C (-4/131°F) Enclosure - Aluminum Protection Index [IP] - IP55 Standard Conformity - CE, EMC, Rohs Overflow Control - PNP/24V/Dry Contact T_on/T_off/T_Alarm - 0-20/0-20/0-20 Switch Off Time Air-Valve [s] - 0-2 Amplitude Sensor - Sind3

VIDEO
