Electromagnetic feeder controller FQ1 PWM/2(1)HC

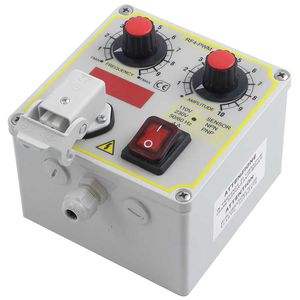

Frequency controller till 12/15A. This controller is available in metallic box with two potentiometers and display, with keys and display, with a potentiometer without dispaly or in circuit with DIN35. General Characteristics Voltage 110/230V, 50/60 Hz 3000/6000 vpm Double Input ON/OFF Soft/fast ramp Manual Regulation amplitude/frequency ( 30/80Hz – 80/130Hz) min/max Limitation Max Output current Line input with plug Vibrator output with connector Delay 8 sec max On/Off vibrator with sensor NPN/PNP or relay contact Automatic Input from PLC 0/10V-4/20mA Status relay. Options Customized label Connector for vibrator Frequency Meter. Applications Digital regulation of linear and bowl feeder till 12/15 Amps – The FQ1 PWM/ XHC allows optimizing operation of the vibratory feeder by searching for its resonance frequency (max performance) thereby eliminating its lengthy and difficult mechanical calibration.
