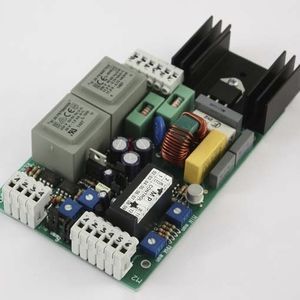

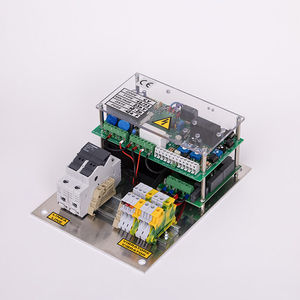

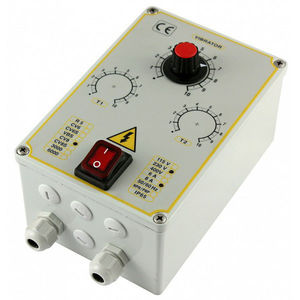

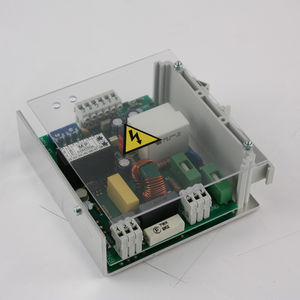

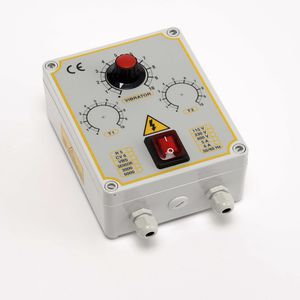

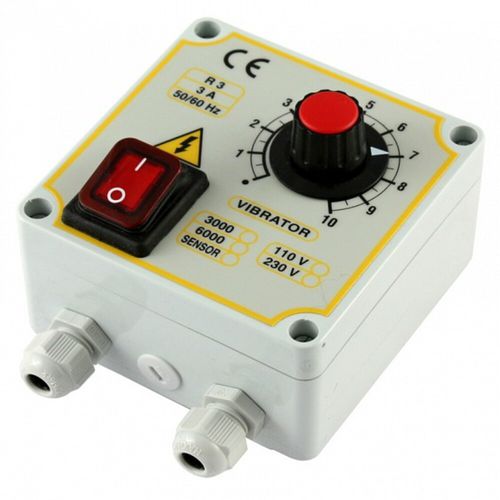

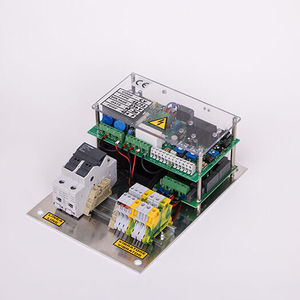

Vibrating feeder phase angle controller R3FSC

R3FSC is a compact and easy-to-use phase angle controller. The maximum current is 4 A. ON/OFF with 24V or dry contact voltage. it is possible to add NPN/PNP sensor and customizable label. Application: Conveyor and assembly automation in packaging and dosing industry. Small linear and bowl feeders till 4 A Max Output Current [A] - 4 Input Voltage [V] - 115/230 Vibration Frequency [Hz] - 50/100 or 60/120 Output Voltage [V] - 20-105 or 40-210 Stabilized vs Input Voltage - Yes Soft Start [s] - 0.2, 2 ON/OFF - 0-24V, Dry contact Working Temperature - -20/55°C (-4/131°F) Enclosure - Aluminum, Circuit, DIN35 Circuit, Plastic Protection Index [IP] - IP00, IP55, IP65 Standard Conformity - CE, EMC, Rohs Opto-isolation - No, Yes
