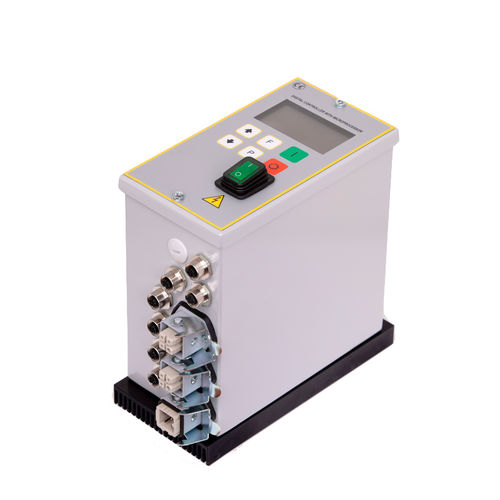

Frequency indicator controller FQNDIG

voltagetemperaturecurrent

FQNDIG is a frequency controller up to 15A, with the possibility to add the amplitude sensor SIND3. Application: Conveyor and assembly automation in packaging and dosing industry. Linear vibrating feeder and vibratory bowl feeder up to 15A. Perfect for markets with different Hz without mechanical tuning. Max Output Current [A] - 10, 15, 6 Input Voltage [V] - 230 Vibration Frequency [Hz] - 5-140 Output Voltage [V] - 40-210 Stabilized vs Input Voltage - Yes Soft Start [s] - 0-10 ON/OFF - 0-24V, Dry contact Automatic Input PLC - 0-10V/4-20mA Working Temperature - -20/55°C (-4/131°F) Enclosure - Aluminum Protection Index [IP] - IP55 Standard Conformity - CE, EMC, Rohs Overflow Control - PNP/24V/Dry Contact T_on/T_off/T_Alarm - 0-20/0-20/0-20 Switch Off Time Air-Valve [s] - 0-2 Amplitude Sensor - No, Sind3
