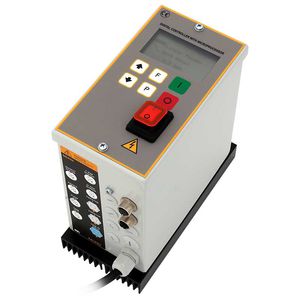

Vibrating feeder phase angle controller MCP

MCP Series is a phase angle controllers that can drive up to 3 channels. These devices have a user-friendly interface thanks to the graphic display, all the parameter can be set by the keypad. Application: It can be used for systems composed by one, two or three channels such as hopper, vibratory bowl feeder and linear vibrating feeders. Max Output Current [A] - 10, 12 (6-8-6), 12 (8-10) Input Voltage [V] - 80-250 Vibration Frequency [Hz] - 50/100 or 60/120 Stabilized vs Input Voltage - Yes Soft Start [s] - 0-10 ON/OFF - 0-24V, Dry contact Automatic Input PLC - 0-10V/4-20mA Working Temperature - -20/55°C (-4/131°F) Enclosure - Aluminum Protection Index [IP] - IP55 Standard Conformity - CE, EMC, Rohs Overflow Control - PNP/24V/Dry Contact T_on/T_off/T_Alarm - 0-30/0-30/10-120 Switch Off Time Air-Valve [s] - 0-2 Channels - 1, 2, 3
