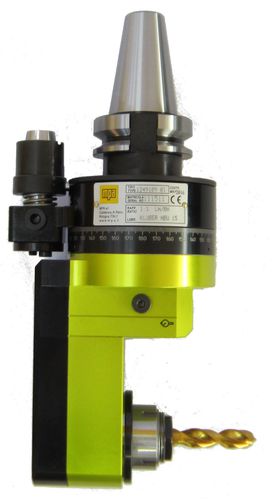

90° angle head

ER colletcompact

90° angle heads designed for manufacturing process optimization, reducing cycletime and downtime. Technical features make them suitable for - Drilling - Tapping - Milling They can be used on conventional machine tools and machining centers with ATC automatic tool changer. Housing aluminum heat treated made, exterior finish anodizing Integral input shank with central shaft in one solid piece, made of hardened steel, ground and balanced. Available all types of shank Flange and stop-bar pin can be manually rotated on 360° Optional upgraded anti-rotation system with 2 or 3 stiffening pins Coolant through stop-bar pin pressure 15 bar or shank-tool center pressure 70 bar Output spindle tool-holder alloyed steel made, hardened and ground Bevel gears with helical tooth form, hardened steel made, ground on the envolute Long-life high speed grease lubricated
