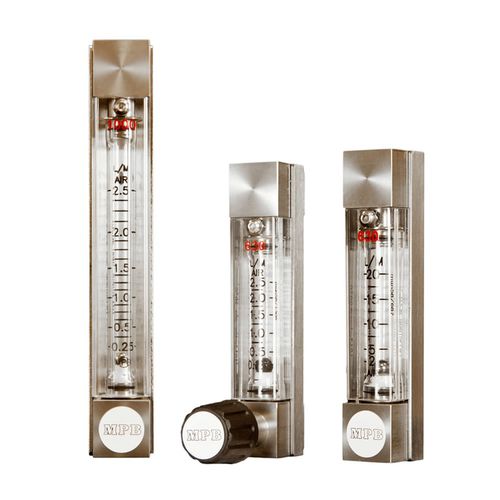

Variable-area flow meter 630 series , 1000 series

for liquidsfor gasstainless steel

The MPB Series 630 and 1000 range of Variable Area Flowmeters are suitable for measuring the instantaneous flow rate of virtually any process liquid or gas. The principle of operation of the variable area flowmeter is quite simple: The height attained by the float in its tapered flow tube is directly related to a calibrated scale. The flow should be read from the centre of the ball, or from the top of the plumb bob float. This range of flowmeters offers very low measurement capability down to 2-20cc/min (Air). The Series 630 and 1000 flowmeters have rear facing connections as standard. The instruments are supplied complete with 2 x M3 mounting studs x 10mm long. SERIES 630 AND 1000 FEATURES *ALL STAINLESS STEEL CONSTRUCTION AVAILABLE OFFERING EXCELLENT CORROSION RESISTANCE *DIRECT READING OF INSTANTANEOUS FLOW RATE *STANDARD FLOW RANGES *EASY TO READ SCALE *FRICTIONLESS, HENCE LOW HEAD LOSS *56mm OR 93mm TUBE LENGTHS *POLYCARBONATE SAFETY COVER *REAR OF PANEL MOUNTING KITS AVAILABLE * STANDARD OR CUSTOMISED FLOW SCALES * MINIMAL MAINTENANCE * EASY TUBE REMOVAL IN-SITU* LONG SERVICE LIFE *VALVED OR NON-VALVED VERSIONS* ALARM VERSIONS AVAILABLE CONTACT MPB SALES OFFICE * REAR FACING CONNECTIONS AS FOR DETAILS STANDARD
