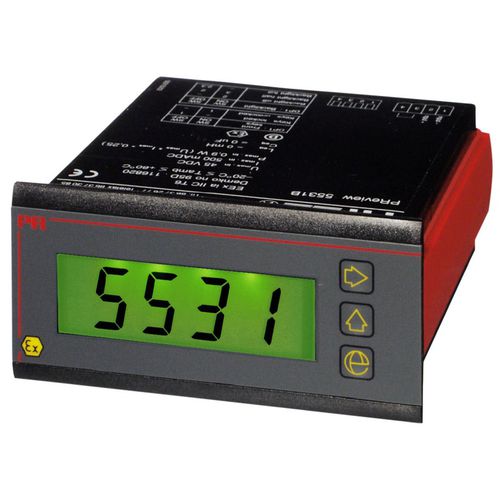

Flow monitor with LCD display FM101 series

volumedigitalprogrammable

SERIES FM101 FEATURES * 4 DIGIT LCD DISPLAY * 24Vdc, 110Vac AND 230Vac MODELS * MAXIMUM AND MINIMUM DISPLAY * OPTIONAL: TRANSMITTER POWER SUPPLY TWO INDEPENDENT AND LATCHABLE ALARMS ISOLATED 4/20 mA OUTPUT * 96MM x 48MM DIN ENCLOSURE WITH EASY TO CLEAN IP65 FRONT PANEL * FOR USE WITH TX50 AND TX175 FLOW TRANSMITTERS The FM101 is an LCD digital panel meter for displaying process flow rates. Housed within a robust enclosure with a high quality push-button display, it offers many years of reliable service. The FM101 will display 4 to 20mA in engineering units. Optional accessories which further extend the applications include an isolated supply to power the TX50 or TX175 2-wire transmitter, a 4/20mA isolated output proportional to the display, and two independent latchable alarms. Calibration and programming is performed via the four front panel push buttons. To prevent accidental or unauthorised adjustment, the programming functions are contained in easy to understand menus protected by a four digit user definable security code. All the instrument functions are programmable. The display can easily be recalibrated on-site using the internal references or an external current source. Loss of power does not affect calibration as all settings are retained for at least five years after power loss or disconnection. The front panel is a robust, easy to clean Noryl moulding sealed with a non-reflective scratch resistant polyester membrane. All FM101 panel meters have a captive neoprene gasket, which provides an IP65 seal between the enclosure and the panel, thus making the instrument suitable for installation in panels, which are frequently hosed down.
