Variable-area flow meter 1200HS series

volumefor liquidsstainless steel

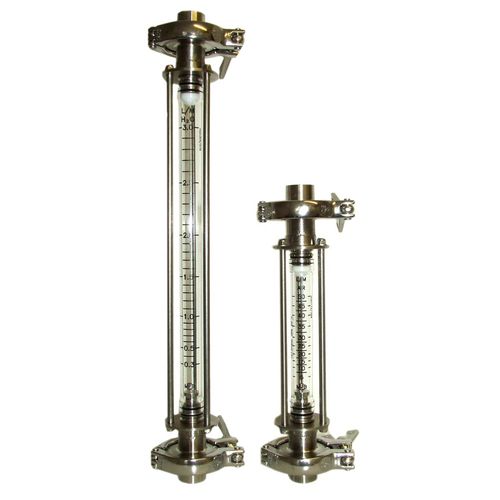

The MPB Series 1200H Flowmeter is manufactured from stainless steel throughout, with the exception of fully stress relieved flow tube. The flow tube is calibrated with a permanently fired black scale and can be supplied with a white backing if required. The unit is easily removed from the line with Triclamp stainless steel connections when the flowmeter can easily be cleaned. For protection, the Series 1200H Flowmeters are fitted with a tubular, virtually unbreakable, polycarbonate safety cover. A wide range of flow tubes are available and MPB can calibrate and scale tubes to customers’ requirements. The Long Series 1200HL has a flow tube length of 295mm, is for use where high resolution scale accuracy is required. The Series 1200H has a flow tube length of 138mm. SERIES 1200 FEATURES * TWO STANDARD LENGTHS AVAILABLE * RANGE OF STANDARD FLOW RATES * STANDARD OR CUSTOMISED FLOW SCALES * TUBULAR POLYCARBONATE SAFETY COVER * STAINLESS STEEL TRICLAMP CONNS * DIRECT READING OF INSTANTANEOUS FLOW RATE * FRICTIONLESS, HENCE LOW HEAD LOSS * ELEGANT AND ROBUST DESIGN * EASY TO READ SCALE * EASY IN-SITU FLOWMETER REMOVAL AND RE-INSTALLATION * WIDE RANGE OF ACCESSORIES * MINIMAL MAINTENANCE * LONG SERVICE LIFE
