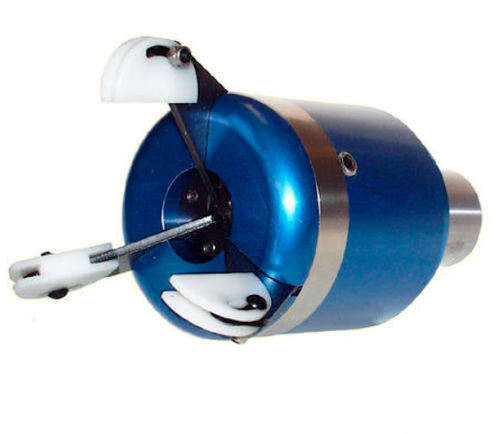

Mechanical gripper

3-jawlargeself-centering

The 3-fingers Grippex is the most optimal design to pull round parts. The three fingers are automatically centering the bar. Grippex 3-fingers pick-up unit exists in 2 different sizes. Grippex IIL (large) and IIS (small). The over-all dimensions depend on the fingers used. For maximum gripping force and minimum interference, use gripping fingers matching your lathe's capacity. Available shanks: Straight ø25, ø32, ø40 mm VDI30, VDI40 Straight ø1",ø1-1/4", ø1-1/2" Available gripping fingers: 2-60 mm with Robot Inserts 3-80 mm with Robot Inserts 7-105 mm with Robot Inserts 3-80 mm with Robot Jaws 7-105 mm with Robot Jaws
