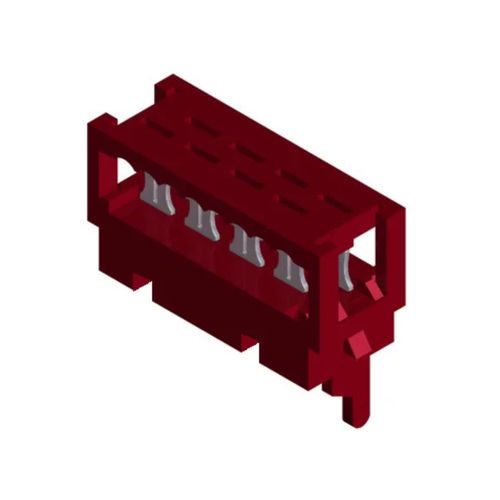

Micro connector IDC 372 1dataPCBparallel
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- PCB
- Shape
- parallel
- Connection type
- locking
- Material
- wire
- Product applications
- tube
- Other characteristics
- micro
- Primary current
1 A
- Voltage
230 V, 500 V
- Pitch
1.27 mm
(0.05 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 105 °C
(221 °F)
Description
Wire to Board Connector, Micro Match Connector 1,27 mm
In tub design.
Pincount - 4, 6, 8, 10 ... 26
Gender - Male
Polarising - yes
Locking - No
Material contact - Phosphor bronze
Plating contact - Sn
Material insulator - Thermoplast UL94V-0
Orientation to PCB - Parallel Parallel
No of rows - 2
Connection type - IDC
AWG - 28
Packaging - Reel, Tube
