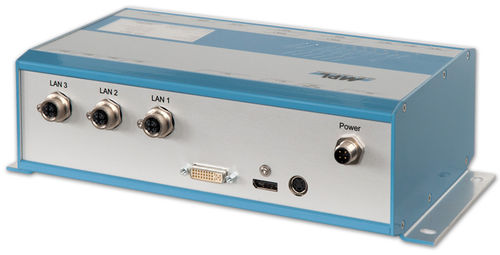

Embedded computer PIP30 Family (PIP31 - PIP38)

Intel® Celeron®Intel® Core i7USB

The PIP30 Product Family is a high performance, low power, and highly integrated rugged Embedded Computer, designed for railway operation. The solution is available in a compact aluminum housing with flange mounting. The unique chassis solutions allows to operate the PIP30 in a moderate as well as in harsh environments without the need of a fan or ventilation holes. The design integrates standard connectors for easy connection or lockable headers, depending on project needs. PIP30 Family Highlights The PIP housings offer sufficient space for up to four 2.5” HDD/SSD or other expansions like UPS, RAID..). Two mPCIe slots allow to expand the system very easy. The internal expansion bus allows to integrate PCI or PCIe cards. This expansion possibilities give a maximum on customization for additional interfaces and features. Particular precautions during the design have been taken that the entire system EMC is within the CE and FCC limits and standards like EN50155, IEC 60945 or MIL-STD-810 can be met. Key features are: • On-board soldered DDR3 ECC RAM up to 4GB (up to 12GB via SO-DIMM slot) • 4 independent GigE Ethernet ports on RJ45 (optionally on M12, fiber, PoE+) • Fanless operation, also with -40°C to 75°C • Long term availability • Extremely flexible • EN 50155 Class Tx certified
