Server PC PIP38 / 3.2 Ghz
all-in-onebarebonerack-mount

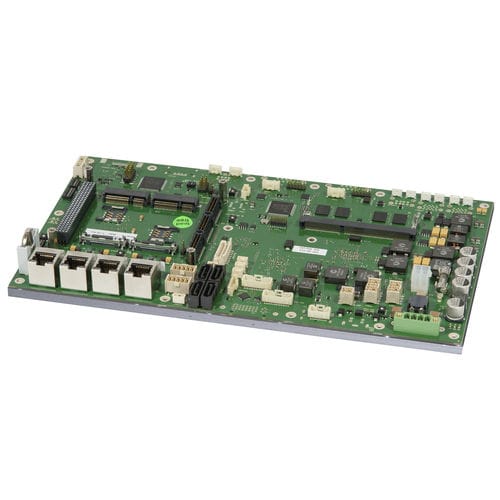

Server PC - PIP38 / 3.2 Ghz - MPL - all-in-one / barebone / rack-mount
Server PC - PIP38 / 3.2 Ghz - MPL - all-in-one / barebone / rack-mount
Add to favorites
Compare this product

Go to the MPL website for more information

Characteristics

Type
server, all-in-one, barebone
Configuration
rack-mount, embedded, mobile, wall-mounted, DIN rail, vehicle-mount
Processor
Intel® Core i7
Ports
PCI, PCI Express, gigabit Ethernet, USB 3.0, DisplayPort, VGA, DDR3 SDRAM, Mini PCIe, SATA, CAN bus, ISA, Ethernet, HDMI, DVI, RS-232, S-Video, USB, RS-485, serial port, USB 2.0
Operating system
Linux, Windows, Windows 10
Size
compact, 2U, 4U, 1U, 19"
Domain
automation, industrial, for thermal imaging, for automation applications, heavy-duty, for marine applications, POS, for harsh environments, for the food industry, for control cabinets, medical, video-wall, commercial, POS, machine vision, for railway applications, for mobile machines
Protection level
rugged, ultra-rugged, dust-proof
Other characteristics
low-consumption, modular, fanless

Description

• Compact rugged embedded PC with Intel CPU (up to Dual Core i7) • Memory up to 12GB ECC DDR3 • Storage up to 4×SATA ports • Easy expansions (2×mPCIe, 1×PCIe, 4×USB 3.0, 2×USB 2.0, 4× GbE, 2×RS 232...) • Input Power 8 - 36 VDC (opt. redundante Power input, galvanic isolation, higher voltage...) • Low power embedded designs (MTBF >76‘683h GF at 40C° / MIL-HDBK 217F) • Fanless solutions for extended temperature -40°C to +85°C • Long-term availability guarantee (>10 years, 20 years repair) • MPLcare / respons of our developing engineers (<24h) • 100% designed and produced in Switzerland
