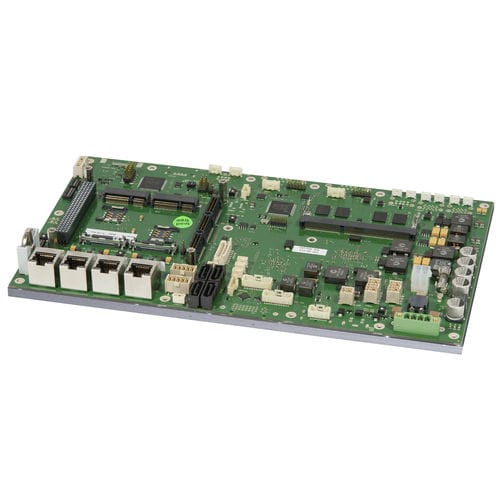

Rack-mount PC PIP 32 / 1.4GHz
embeddedwall-mountedDIN rail

Rack-mount PC - PIP 32 / 1.4GHz - MPL - embedded / wall-mounted / DIN rail
Rack-mount PC - PIP 32 / 1.4GHz - MPL - embedded / wall-mounted / DIN rail
Add to favorites
Compare this product

Go to the MPL website for more information

Characteristics

Configuration
rack-mount, embedded, wall-mounted, DIN rail, VESA mounting, vehicle-mount, panel-mount, open-frame
Processor
Intel® Celeron®
Ports
PCI Express, PCI, gigabit Ethernet, DisplayPort, DVI, Mini PCIe, 4G, SATA, CAN bus, Ethernet, serial port, RS-232, GPS, DDR3 SDRAM, USB, 3G, VGA, HDMI, USB 3.0, RJ45, RS-485, USB 2.0
Operating system
Linux, Windows
Size
compact, 2U, 4U, 3U
Domain
heavy-duty, industrial, network, for digital signage, for control cabinets, for automation applications, for marine applications, for harsh environments, POS, automation, for the food industry, POS, medical, for mobile machines, machine vision, video surveillance, for railway applications, for thermal imaging
Protection level
rugged, ultra-rugged, dust-proof, ESD
Other characteristics
fanless, wireless, low-consumption, modular

Description

• Compact rugged embedded PC with Intel CPU / Celeron • Memory up to 12GB ECC DDR3 • Storage up to 4×SATA ports • Easy expansions (2×mPCIe, 1×PCIe, 4×USB 3.0, 5×USB 2.0, 4× GbE, 2×RS 232...) • Input Power 8 - 36 VDC (opt. redundante Power input, galvanic isolation, higher voltage...) • Low power embedded designs (MTBF >76‘683h GF at 40C° / MIL-HDBK 217F) • Fanless solutions for extended temperature -40°C to +85°C • Long-term availability guarantee (>10 years, 20 years repair) • MPLcare / respons of our developing engineers (<24h) • 100% designed and produced in Switzerland
