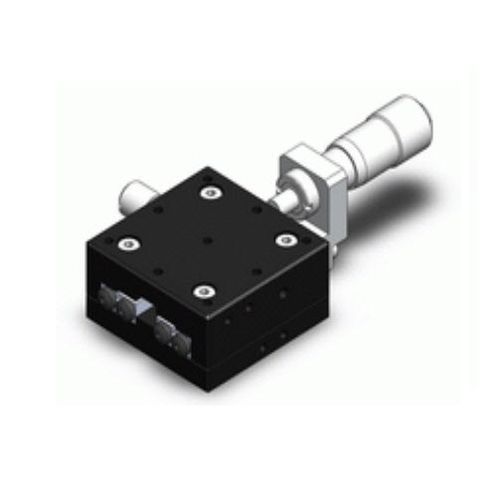

Linear positioning stage DT,T series

XYXYZmanual

Details : Precision Linear Translation Stages with Good Performance at an Economical Price Index 1.Features 2.Comparision Table of Linear Translation Stage Models 3.Catalog1 of Linear Translation Stages, X-Stages (29 Pages, Rev01) 1.Features - Travel Range ups to 200 mm - Good Performance at an Economical Price - Heavy-Duty Cross Roller Bearing for Precise Linear Motion - Multiple Positioners can be set up in XY, XZ or XYZ system - Micrometer head drives in Center-, Left- or Right-Handed configuration The manual linear translation stages are offered in wide range of travels, from less than 6 mm up to 200 mm, high loading and large platform sizes. Different types of our linear translators are suitable for different applications. For example, the model T30X-6R, a miniature positioner with 6 mm of travel, is ideal for use in applications where space is limited. The popular translation stage of T90X-25R was designed to provide the stability and good performance required for use in general positioning applications. The DT01X series of dovetail translation stages are economical positioners ideal for low-precision use. And our long travel digital manual linear stages, T120X series, provide a motion with digital readout of the travel range. The display resolution is up to 10 μm. Otherwise, most of our lienar stages can be set up in multi-axis configurations, providing XY, XZ, or XYZ translation according to the different kinds of your requirements.
