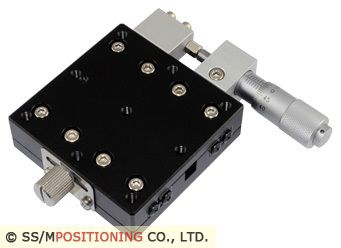

Linear stage T60X-13R

XYtranslationXYZ

Details : 13 or 25 mm Travel, Precision Linear Translation Stage, Right-Handed Config Index 1. Key Features 2. Specifications 3. Dimension Drawings 4. Documents and Drawings 5. Related Products 1. Key Features - 0 - 13 mm travel with an 10 μm resolution - 0 - 25 mm travel range is available for this model - Cross roller bearing for precise linear motion control - Multipile positioners can be set up in XY, XZ or XYZ orientation - Micrometer head drives in center-, left- or right-handed configuration The model, T60X-13R, manual linear translator, features crossed-roller bearing guide for precise linear motion and stable performance over the entire 13 mm travel range. Micrometer head drives in right-handed configuration with an 10 μm resolution, and supporting loads up to 5.0 kg. For more information about the left- or center-handed construction, please try to find the related products as below. Otherwise, the modular design allows for XY, XZ or XYZ configuration as the application requirements you need. The Right Angle Bracket, T60, allows the T60X series to be configured in XZ or XYZ orientation. If you like to know more details about other Linear Translation Stages or Manual Linear Stages, please click Compare spec. between Linear Translation Stages or view Related Products as below.
