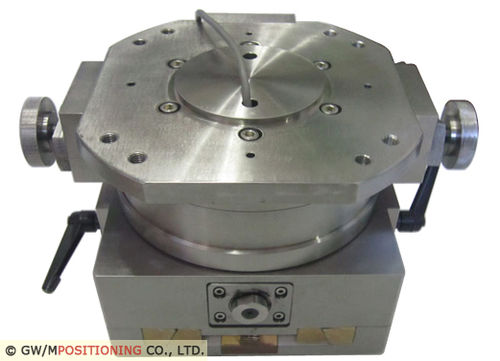

XY stage RG200-EN

goniometertiltrotary

Details : Ultra-Performance and Heavy Duty Rotation and Goniometer System 1. Key Features - ±5° adjustment ranges in both 2-Axes - Stainless steel construction for High-Load capacity, ups to 200 kg - Encoders in both 2-Axes ensure the High-Resolution of 9 arc sec (9”) - XY stage will be easy to set up as required The Heavy-Duty and Ultra-Performance Rotation, Goniometer System is idea for the High-Precision motion in 2 operating axes, i.e. Tilt (Goniometer) Stage and Rotational Stage. It is widely using in Diamond Multi-Micro Wire Saw (DMMWS) and Diamond Cutting Machines. Now, we improved our original design and the new design will contain an encoder in each stage. So the minimum readout (resolution) will be up to 9 arc sec (9”).
