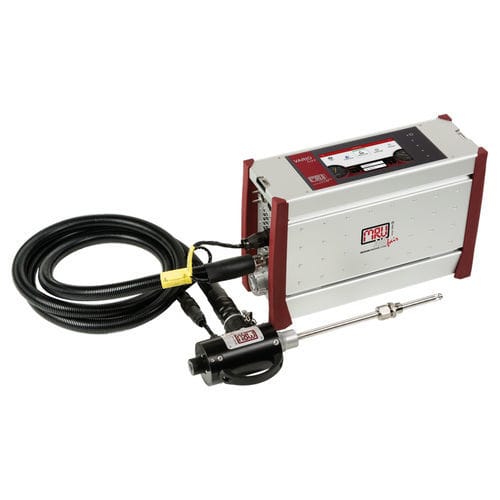

Flue gas analyzer VARIOluxx

monitoringportableautomatic

Portable stack gas emission analyser for long time measurements of industrial combustions Outstanding benefits: precise measuring technique by means of infrared (3-gas) and electrochemical cells (6-gas) most suitable for precise low Nox measurements and other toxic gas emissions measurement according to new MCP Directive 2015/2193 for medium combustion plants with rated power <50 MW all important interfaces are available, such as Ethernet (LAN), WLAN, Bluetooth, USB, RS485, 8 channel analog Outputs Remote control via smartphone or tablet using VCN server via LAN/WLAN (no remote control via MRU4u app) Basic-Equipment Integrated, efficient electrical gas cooler (Peltier cooler) with automatic condensate draining pump Automatic zeroing by means of 3-way solenoid valve, internal sample flow volume measurement Strong, regulated sample gas pump and easy replaceable, effective PTFE filter Zero gas (ambient air) inlet nozzle and separate passive VENT outlet nozzle for sample gas O2 measurement included, using long-life electrochemical cell Stack gas temperature measurement up to 1.200°C (optional up to 1.700°C) Differential pressure or stack gas pressure +/- 100 hPa Combustion air temperature up to 500°C, using adequate NiCrNi probes Automatic measurement incl. data logging function Large fuel type list incl. self choose fuels with user definable parameters Complete combustion calculation using country specific fuel type list O2 referencing (normalisation) to user settable value Automatic internal test and control of soft- and hardware functions
