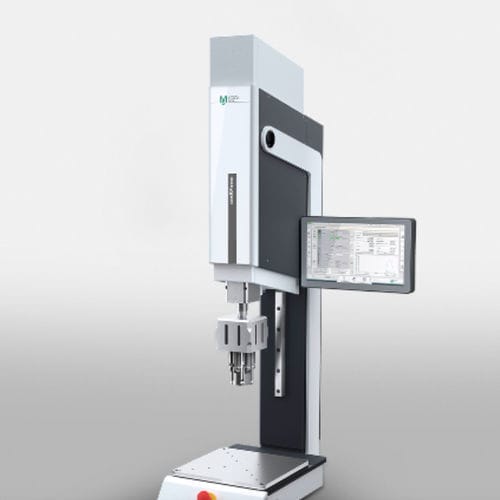

Ultrasonic welding machine MS sonxTOP NEWTON

automaticbenchtopfor plastics

Our enhanced top model offers all the options and advantages of our servo welding machines, including our MS paralliCer© technology. MS sonxWARE Tensile Test: simplified tensile test function MS sonxWARE Log: log function for monitoring specified pages MS sonxWARE USB User Administration: user log in via USB stick MS Input/-Output Package Extended: 30 inputs/outputs MS sonxWARE Network: simple data exchange between machine and PC MS Sequence: simple step-by-step programming to define your preferred program sequences Further software and hardware options can be found in the technical data sheets Special features of the MS sonxTOP NEWTON: Reinforced mechanical components adapted to force ranges of up to 9,000 N, design of servo drive components adapted to welding forces of 9,000 N, ideal for cut & seal applications as well as for welding applications of large components requiring welding forces above 3,000 N Recipe management of up to 1,000 welding recipes 20 kHz / 6,000 W 20 kHz / 4,000 W Combination of turn-off options STANDARD / VARIO / KOMBI Time Energy Absolute path Relative path Absolute performance External turn-off 10 levels + 2 holding forces (force, speed, amplitude)
