Glass capillary viscometer

laboratoryautomaticvertical

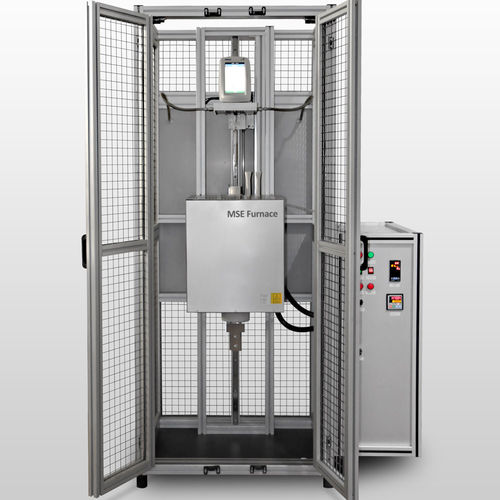

A viscometer, viscosity meter is a measuring instrument used to determine a fluid’s internal flow resistance or viscosity. Viscometers frequently used in laboratories, but it also has practical applications in factories and other industrial environments. High temperature glass viscometer furnace is designed for measure viscosity of glass at 1600°C. The furnace is integrated on a ready-made viscometer. The furnace has a PC connecting and PID controlled heating. The volume of the furnace is 5 litres. It has a programmable temperature. It has a stainless steel outer surface and wire mesh protection. The dimensions of crucibles and spindles can be changed. The high temperature glass viscometer furnace is produced on demand by the customer. After sales spindles and alumina crucibles are accommodable from our company. STANDARD FEATURES Double-layers steel construction, epoxy painted galvanized-steel exterior. Able to set programmable temperature, time and soaking time and delayed start feature via PID controller Able to save different programs which is consist of different steps Able to resume the program after the power failure High-quality fiber insulation, low energy consumption ±1°C temperature display sensitivity Able to measure the viscosity at high temperature Integrated viscometer with PC connection Easy changeable crucible
