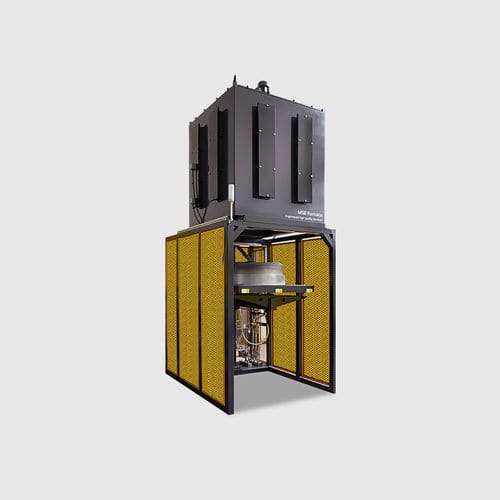

Chamber furnace ELV series

annealingelectricair circulating

The lift bottom retort furnace is designed for the heat treatment of big and heavy metals and especially stress relief annealing. Furnace raises all samples to furnace with the elevator mechanism. The homogeneous temperature distribution is provided by the fan system and also heating elements on each wall placed in the furnace. Because of that, the lift bottom retort furnace is provided more homogeneous heating compare to the chamber furnaces. Lift bottom retort furnace provides an ideal condition for the heat treatment of stack samples (nut, bolt, etc.), too. The protective atmosphere and vacuum ambient are provided with the retort that specially designed inside the furnace. The biggest advantage of the lift bottom retort furnace is to easily place heavy samples into the furnace by its elevator bottom that up-down moving. Compared to the large furnace models with the front lid when the elevator bottom is opened while the furnace is still hot the heating elements are better protected and the contact of the user with heat is reduced. STANDARD FEATURES Programmable step controller via digital display Observation of set and real temperature Delayed start and program save feature Temperature control via PID and ±1°C temperature display sensitivity System protection for over temperature, audio visual warning alarm Temperature measurement via thermocouples Error display in case a breakdown Percentage of electrical energy consumption Able to resume the program after the power failure Heating on each side Exhaust gas outlet Low energy consumption
