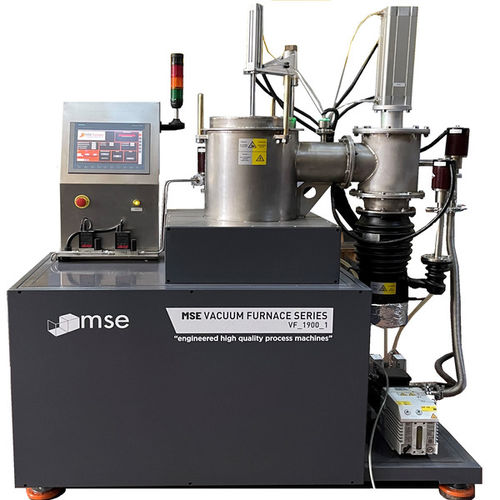

Chamber furnace VF_1900_1

high-vacuumcontinuous

Max. Temperature (°C): 1900 Continuous Use Temperature (°C): 1700 Volume (L): 1 Vacuum Level: 10^-4 torr Gas Flowmeter: Mass Flow Controller (qty: 2 for CH4 and H) Inlet Holes: KF 25 (total qty: 2, 1 pc for vacuum, 1 pc for inert gas inlet) Pressure Control: Pressure transmitter and vacuum sensor Sweeping Limit for Vacuum: 10^-4 torr diffusion pump system will be integrated into the furnace. After the vacuuming to heating process will continue with Ar, CH4 and H. Chamber Type: Vertical and cylindrical Heating Chamber: Reinforced cabin, resistant to high vacuum. Heating Elements: Graphite Heat Shields: Graphite Temperature display sensitivity: ± 1°C Controlled Cooling: There is no option to fast cooling. However, for slow cooling, it can be controlled with 1 °C / min. Loading Type: Top loading HMI: PLC + Siemens 9 ̎Touch Screen
