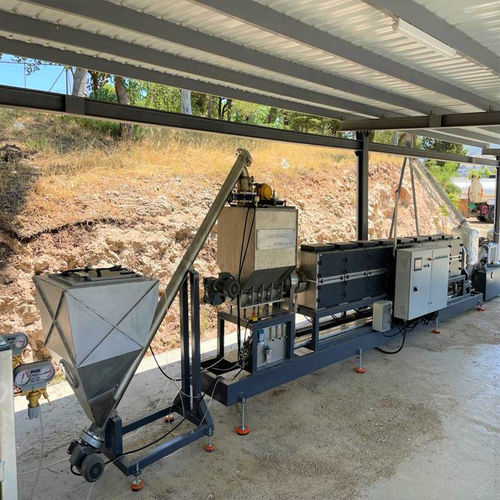

Continuous furnace S650_F850

for biochar production

PILOT SCALE BIOCHAR PRODUCTION SYSTEM Maximum Temperature of the Furnace: 850 °C Continuous Usage Temperature of the Furnace: 250 - 600 °C Number of Independently Controlled Hot Zones: 7 Reactor Hot Zone Length (mm): 5500 Reactor Dimensions (OD x L mm): 323 x 5900 Cooling Capacity: 2500 Kcal/hour Feeding Bunker: 1000 L Output Bunker: 535 L Maximum Feeding Capacity: Maximum 25 kg/hour from 35% moist product. If the product is fed with a humidity of less than 35%, the capacity is 25-35 Kg/Hour. Furnace Total External Dimensions WxHxD (mm): 900 x 3020 x 11070 Furnace Heating Type: Kanthal A1 Kiln Insulation: Alumina refractory and brick Thermocouple Type: K type Number of Thermocouples: 18 pcs Furnace Model: Split type, opening upwards. Please contact our company for different capacities and more information.
