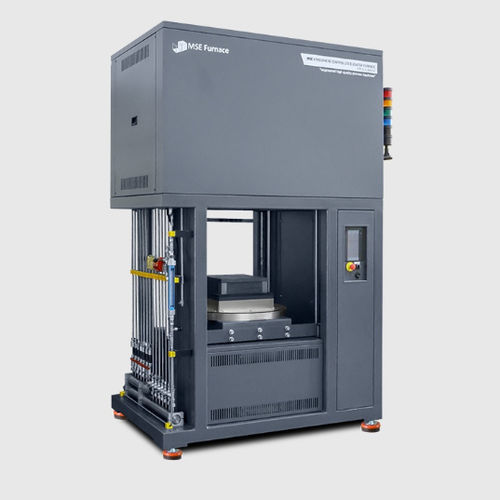

Chamber furnace ATM_ELV_1800_43

sinteringmeltingheat treatment

Atmosphere controlled lift bottom furnace is preferred for where a protective environment is required such as manufacturing of metal products, heat-treatment, sintering, melting, ageing, thermal testing, powder synthesizing. As a result of these requirements, MSE has been designed and produced atmosphere controlled lift bottom furnace to make heat treatment under the protective atmospheric conditions such as argon, nitrogen, vacuum, hydrogen and the like. MSE Furnace uses also cylindrical atmosphere cabins which are more stable than other geometries for atmosphere controlled lift-bottom furnace according to process. In addition, atmosphere controlled furnaces are water-cooled. So, water cooling system pressure, cabin temperature, internal atmospheric pressure, intelligent systems are monitored by the user to make the process is safe. The adjustable gas flow meter, high-pressure relief system, overtemperature alarm and vacuum pump are integrated into the furnace as standard. Lift bottom enables heavy and large samples to be placed more easily on the bottom of the furnace. The heating cabin of the furnace consists of graphite heating elements and graphite insulation materials selected according to the temperature and application type. Atmosphere controlled lift bottom furnaces by consists of graphite elements provide the ideal conditions for working with the oxygen-free condition and metal samples. STANDARD FEATURES Able to set programmable temperature, time and soaking time, display of cooling water temperature and process details, and data save by USB connection feature via PLC controller, touch screen
