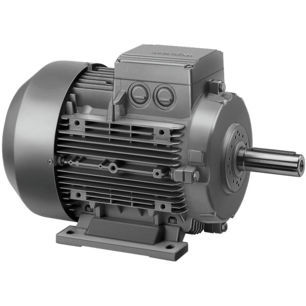

Three-phase motor

asynchronousIP55ATEX

The 2-, 4-, or 6-pole Motors starting at 0.75 kW belong to efficiency class IE2 as per IEC60034-30:2008 and IEC60034-2-1:2007 and are featured in temperature class F; up to design size 315 they are featured in temperature class B. Furthermore, these motors are perfectly suitable for the operation with our frequency inverters. The motor protection is factory-guranteed with three PTC's. Our motors are designed for permanent operation S1 and belong to protection type IP55. The IE2 motors can be built in diverse basic configurations B3, B5 up to design size 132, and also in B14 and B34. Upon request, we also deliver customized special flanges or adapting flanges. The motor models of design sizes 80 to 132 are presented as "Multi-Mounting" motors and feature unscrewable feet, which can also be screwed-in laterally. This way the position of the terminal box can be left or right. This model size features an aluminium motor housing. Options: All motors can be equipped with a Fan, an Encoder, connecting wires, a stopping brake, and are also available in the corresponding execution as ATEX-Motors.
